High-Performance Electrolyzer Spares Manufactured by Tiaano for Seawater Chlorination Systems
In modern industrial biofouling control, maintaining continuous plant uptime requires electrolytic cells to operate without unexpected failures. Commercial and industrial facilities utilizing maritime waters face extreme challenges from biological growth, making active bio-growth mitigation a necessity. High-performance Electrolyzer Spares presented by Tiaano offer a reliable, engineered alternative designed to ensure maximum mechanical integrity and electrochemical efficiency during intensive Seawater Chlorination processes.
The Critical Role of Electrolyzer Spares in Seawater Chlorination
Electrochlorination plants rely heavily on the continuous electrochemical conversion of sodium chloride present in seawater into sodium hypochlorite. This process requires robust equipment to survive severe operational stresses. Deploying premium Electrolyzer Spares in your infrastructure safeguards system parameters against early degradation. Because these internal elements are exposed to rapid liquid flows and complex chemical transformations, components like the anode are decisive factors in balancing power consumption against output yield.
In high-salinity marine environments, any drop in component reliability triggers significant downtime and costly maintenance cycles. Utilizing specialized Electrolyzer Spares explicitly optimized for Seawater Chlorination ensures that operations run smoothly and maintain required chlorine dosing concentrations without interruption. This consistency protects downstream machinery, such as heat exchangers and cooling water networks, from micro and macro biofouling.
Technical Specifications: Engineering Details
Precision manufacturing defines Tiaano’s product approach. Every element is fabricated to strict tolerances to guarantee exact dimensional interchangeability with existing modular electrochlorination cells:

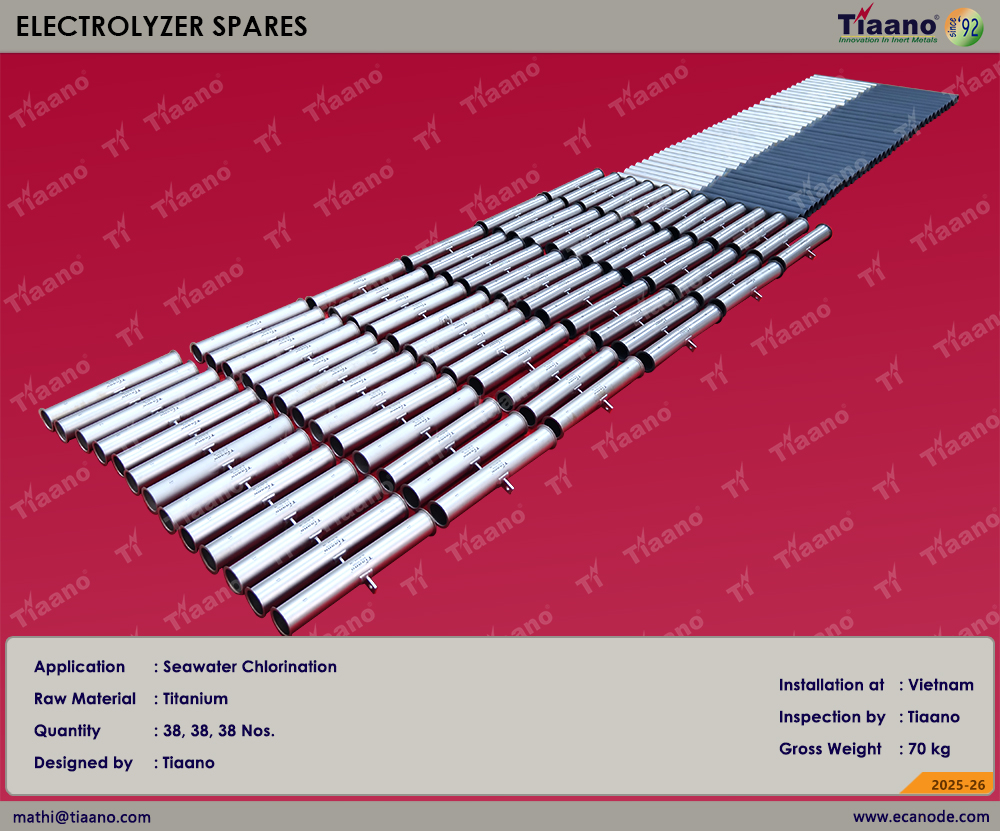

· Product Classification: Electrolyzer Spares (Tubular Anode Components)
· Primary Application: Industrial Seawater Chlorination / Biofouling Mitigation
· Model / Dimensional Profile: Outer Diameter (OD) 60.3 mm × 406 mm Long × 0.9 mm Thickness
· Active Area Geometry: Entire Inner Surface (Fully Activated Coating Profile)
· Base Raw Material: Highest Grade Corrosion-Resistant Titanium (Gr. 1 / Gr. 2)
· Quantity Manufactured: Batch configuration of 38, 38, 38 Nos. (Totaling 114 Units)
· Gross Shipment Weight: 70 kg
· Project Destination: Industrial Infrastructure Installation in Vietnam
· Quality Inspection Authority: Tiaano Internal Quality Assurance Wing
Raw Material Justification: The Titanium Advantage
The choice of Titanium as the foundation for these Electrolyzer Spares is rooted in its exceptional physical and chemical characteristics. Seawater is naturally rich in chloride ions, creating a highly corrosive environment for standard alloys. Titanium provides unmatched resistance to pitting, crevice corrosion, and general material erosion under high-velocity fluid dynamics.
Furthermore, when Titanium functions as an anode substrate during Seawater Chlorination, it supports highly stable catalyst layers, such as Mixed Metal Oxides (MMO). This coating enables low oxygen-evolution potentials and high chlorine selectivity, which lowers overall cell voltage and reduces electrical power costs during prolonged operations. The thin 0.9 mm wall structure optimizes heat transfer across the electrode boundary while maintaining structural rigidity, ensuring long-term durability under high current densities.
Quality Assurance & Global Delivery Footprint
At Ti Anode Fabricators Pvt. Ltd., quality control is embedded throughout our fabrication flow. From validating the raw material certificates of the incoming Titanium to checking final dimensions and testing coating thickness, our internal inspection team ensures error-free execution. This precision was evident in our recent delivery of 114 tailored units for a major industrial plant in Vietnam, proving our capability to meet strict international project timelines.
As heavy industries move toward greener, chemical-free biofouling solutions, Tiaano remains at the forefront of electrochemical innovation. Our global footprint spans diverse sectors, including coastal power stations, desalination facilities, oil and gas refineries, and marine ballast water management plants. Through continuous research and development, we are ready to support future partnerships worldwide, delivering highly dependable components that lower total cost of ownership.
Optimize Your Electrochlorination Assets Today
Ensure your water treatment infrastructure operates at peak performance with premium Electrolyzer Spares tailored for demanding Seawater Chlorination environments. Reach out to our engineering specialists to discuss custom dimensions, coating options, or replacement projects.
